150

Linn 150 loudspeaker

Product info

• Product Name: 150

• Date of Introduction: September 2024
• Type: 3-way passive floor-standing loudspeaker

With Exakt option with either the Linn Selekt DSM or an Exaktbox.

• Features
  • Excellent linear performance and excursion
  • Electro-formed Linn logo tweeter guard
  • Lower-order crossovers for signal purity
  • Down-firing ports produce impactful and omnidirectional bass performance
  • Optional aluminium upgrade plinth improves overall performance (available 2025)
  • Optional Exakt configuration

Manuals

Safety Information

Warranty Terms & Conditions

Linn Support Site

Installation

We recommend that your Linn loudspeakers are unpacked, installed and adjusted by an authorised Linn retailer.
To get the best from your Linn loudspeakers, it is important that they be positioned and levelled correctly.

Positioning

As with any stereo loudspeaker, there are some fundamental principles which should be observed to get the best sound from your loudspeakers.

• The loudspeakers should be placed at an equal distance from the wall behind the loudspeakers.
• The speakers should be a similar (not the same) distance from the walls to the outside of each loudspeaker.
• Any toe-in applied should be the same for each loudspeaker.
• The loudspeakers should be level with all four spikes in contact with the floor. Use Linn Skeets for hard floors.

For further assistance, try our customer support pages

Connections

Single wiring

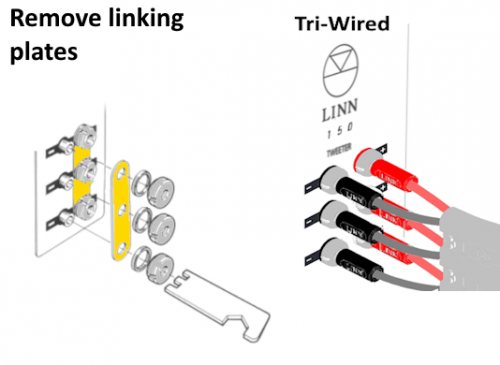

Tri-Wire

Exakt

This should be installed and adjusted by an authorised Linn retailer.

The loudspeaker will need to be converted for Active operation and connected to either:

• An Exaktbox or
• A Selekt DSM with 3 cartridges, (with 3 DACs).

Note: There are no Aktiv cards available for the 150 loudspeakers. i.e. Aktiv crossover cards that fit with the Linn Power Amplifier.

The 150 can ONLY be set up in Active mode with the three Selekt DSM cartridges or an Exaktbox.

Technical Specifications

	Linn 150 Loudspeaker
Overview	Product Name: 150 Date of Introduction: September 2024 Type: 3-way passive floor-standing loudspeaker With Exakt option with either the Linn Selekt DSM or an Exaktbox.
Dimensions	(H) 939 mm x (W) 210 mm x (D) 297 mm (H) 37 inches x (W) 8.3 inches x (D) 11.7 inches
Weight	21.56 kg / 47.58 lb each
Drive Units	Tweeter: 19.55mm soft Sonomex dome; large ferrite magnet; voice coil in ferrofluid Mid: 160mm with Nextel-coated paper diaphragm; large ferrite magnet motor system with high linear excursion Bass: 190mm with Nextel-coated paper diaphragm; large ferrite magnet motor system with high linear excursion
Operating volume	40L
Nominal Impedance	4Ω
Bass System	Dual down-firing ports
Binding posts	3pairs
Sensitivity	86dB
Frequency response	38 Hz to >20 kHz +/- 3 dB
Finishes	Walnut, Oak, Black, White
